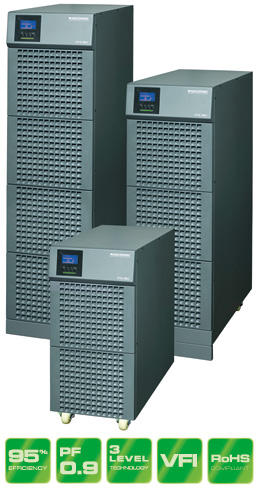

ITYS Pro 10-15-20 kVA

The solution for

  • Server rooms
  • Service sector
  • Infrastructure
  • Healthcare sector
  • Light industrial applications

Advantages

Innovative design

  • Easy to order, install and operate
  • Very compact footprint
  • Robust and reliable connectivity
  • Clear multilanguage LCD interface

Total adaptability

  • 2 UPS configurations: with or without batteries
  • Integrated maintenance bypass
  • Integrated LAN network monitoring
  • Communication ports for building management system (BMS)

Optimum availability

  • Designed to operate in challenging electrical environments
  • Redundant bypass protection
  • Low EMI emissions compliant for commercial installations
  • Internal isolation transformer available on request
  • Innovative battery management extending battery life
  • Remote monitoring service

Standard electrical features

  • Internal maintenance bypass
  • Backfeed protection: detection circuit
  • EBS (Expert Battery System) for battery management

Standard communication features

  • User-friendly multilingual interface with graphic display
  • Integrated LAN network monitoring via web browser
  • 2 slots for communication options

Communication options

  • Dry-contact interface
  • MODBUS interface

Local and IP network management solutions

  • LOCAL VIEW: ideal point-to-point software for UPS monitoring and shutdown of Windows®, Linux and MAC OS X® operating systems
  • NET VISION: professional network adapter for monitoring and controlling UPS units from a remote location (option for all models)

Remote monitoring service

  • LINK-UPS, remote monitoring service that connects your UPS to your Critical Power specialist 24/7
Sn [kVA]101520
Pn [kW]913.518
Input / output 3/1 - 3/33/3
INPUT
Rated voltage3P+N 400 V
Voltage tolerance± 20 % (-40 % @ 70 % of nominal load)
Rated frequency50/60 Hz ±10 %
Power factor / THDI0.99 / < 2.5%
OUTPUT
Rated voltage1P+N: 230 V (configurable: 208(1)/220/230/240)
3P+N: 400 V (configurable: 360(1)/380/400/415)
Voltage tolerance± 1%
Rated frequency50/60 Hz ±2 (up to ±5 with generator - selectable)
OverloadUp to 150 % for 30 seconds
Crest factor3:1 (complying with IEC 62040-3)
ConnectionsTerminals
BYPASS
Rated voltagerated output voltage
Voltage tolerance±15 % (± 20 % with generator - selectable)
Ratede frequency / tolerance50/60 Hz ±2 (up to ±5 with generator - selectable)
COMMUNICATION
InterfacesRS232 - Ethernet
Optional cardsSNMP card - ADC/RS485 card - MODBUS card
Communication softwareLOCAL VIEW - NET VISION - WEB BROWSER
EFFICIENCY
Online modeup to 95 %
ECO modeup to 98 %
ENVIRONMENT
Ambient temperature0 to 40 °C (15 to 25 °C for maximum battery life)
Relative humidity0-95 % non-condensing
Maximum altitude1000 m without derating
Noise level at 1 m< 51 dBA< 54 dBA
UPS CABINET
Type S - Dimensions W x D x H370 x 780 x 810 mm
Type S - Weight (without batteries)58 kg
Type M - Dimensions W x D x H370 x 780 x 1170 mm
Type M - Weight (without batteries)75 kg
Type T - Dimensions W x D x H370 x 780 x 1385 mm
Type T - Weight (without batteries)82 kg
Degree of protectionIP20
STANDARDS
SafetyEN 62040-1, EN 60950-1, AS 62040.1.1, AS 62040.1.2
EMCIEC/EN 62040-2 class C2, AS 62040.2
PerformanceVFI-SS-111 - IEC/EN 62040-3 - AS 62040.3
Product certificationCE, RCM (E2376)

(1) Pout = 90 % Pnom
