Specially designed online UPS for CT & MRI Scanners
Limits the Peak Power Consumption Utility (EB)
uZen HSC 303 operates at lower sanctioned power allowing it to use a low capacity generator. The programmable power consumption limit is 30% - 100% of input power.
- 200VAC phase-phase
- 4:1 crest factor, IPL facility*
- Phase-phase and phase-neutral voltage regulation of ± 1% on 0-110% unbalanced step loading.
- Remote power monitoring software.
- Galvanic isolation at the output as per IEC 624001-3 for comprehensive power protection. Input to output galvanic isolation for operator and patient safety.

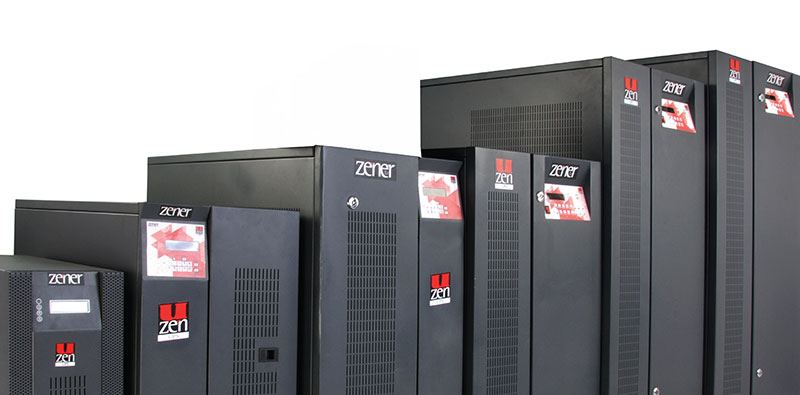

UZen HSC 303 online UPS (CT & MRI Scanner)
10KVA - 200KVA 3 - Ø Input 3 - Ø Output
| Technology | Double conversion Online with the latest MPWM technology using IGBT | |||
| Rating | 10KVA - 200KVA | |||
| DC Bus | 192V/240V/360V/384V | |||
| INPUT | ||||
| Input voltage | 415V AC Three Ø & N | |||
| Input voltag window | 330 - 470V | |||
| Input Frequency | 50Hz ± 10% | |||
| Power walk in | Soft start for 0-20 seconds power walk-in | |||
| Input power limiting facility | Input power limit adjustable from 25% to 100% of the unit capacity, for example: when activated for 25% for a 60KVA UPS, the maximum input power drawn will be less than 15KVA.Thus it facitates to operate a 60KVA UPS & Scanning machine at a lower power sanction from EB or lower generator capacity | |||
| RECTIFIER | ||||
| Type | 6 Pulse / 12Pulse / PFC | |||
| Voltage regulation | ( ± ) 1% | |||
| Ripple voltage | < 2% without battery | |||
| Converter protection | Advanced electronic protection for device safety backed up with MCBs / MCCBs & fast acting fuses | |||
| INVERTER | ||||
| Inverter type | IGBT based MPWM with instantaneous sinewave control | |||
| Power factor | 0.8 lag | |||
| Nominal voltage | 400V Ph- Ph & 230V Ph- Neutral | |||
| Regulation | Balanced load: ( ± 1% ) Unbalanced load: ( ± ) 1%-Ph to Ph & Ph to N on 0-110% unbalanced step loading | |||
| Unbalanced Load Phase Shift | 120°± 0.5° | |||
| Frequency | 50 Hz ± 0.1Hz | |||
| Waveform | True Sinewave | |||
| Total Harmonic Distortion | Linear Load: < 2% and Non Linear Load: <6% | |||
| Transient Response | Remains within +/- 5% & recover to normal within 20 msec | |||
| Over Load Capacity | 100%-Continuous / 125%-1 Minute / 150%-5 Seconds | |||
| Nominal output current / phase | 10KVA - 12A / 20KVA - 23A / 30KVA - 35A / 40KVA - 46A / 60KVA-70A / 80KVA - 93A/ 100KVA - 115A/ 120KVA - 140A / 150KVA - 174A / 180KVA - 209A / 200KVA - 232A | |||
| Crest Factor | 4:1 | |||
| Mode of Operation | Designed for Continuous operation | |||
| Isolation | Galvanic isolation at the output for comprehensive power protection. Input to output galvanic isolation for operator & patient safety. | |||
| BATTERY | ||||
| Battery | SMF/ TUBULAR | |||
| Charger Type | CCCV | |||
| Charging Current Standard | 0 - 20A | |||
| Inverter Protection | Advanced Electronic Protection for device safety backed up with MCB’s / MCCBs & fast acting fuses, high speed pulse by pulse electronic device protection over voltage / under voltage protection, Electronic over current trip with reset. | |||
| EFFICIENCY | ||||
| Overall efficiency on 100% load | > 93% | |||
| Ambient temperature | 0 - 40°C | |||
| Enclosure protection grade | IP - 20 | |||
| Testing standard | As per IEC 62040 - 3 | |||
