STATYS XS

Reliable transfer system for redundant power supply 16 and 32 A - Rack mounted

STATYS XS

The solution for

  • Rack servers
  • IT networking
  • Hubs & routers

Ensured power continuity

  • Provides redundant power supply to single-corded IT equipment.
  • Powered by two separate independent sources.
  • A competitive alternative to redundant power supply (dual-corded) in the equipment cabinet in terms of price and features.
  • Fast transfer time without source overlapping (ITI curve compliant).
  • Maintenance-free equipment.

Easy rack integration

  • Easy installation in 19” rack cabinets.
  • Compact enclosure saving valuable cabinet rack space.
  • Plug and Play devices pre-configured according to Socomec's STS field experience.
  • Easy and quick connection of the loads via multiple IEC 320 outlets.
  • Integrated backfeed protection device even easier the electrical integration.

Hot-swappable version

  • Easy extraction and replacement of controle and power unit without load interruption.
  • Reduced MTTR.
  • Front monted double bypass protected against miss manipulation.
  • Flexible load conection via fully rated terminal (up to 35mm²) or locking IEC plugs .

Agile and easy-to-use

  • Front panel with LCD display for intuitive control and easy management.
  • Source selection from the front panel without modifying the cabling.
  • Automatic and manual transfer.
  • Synchronized and non-synchronised sources management.
  • LCD display of all input and output values.
  • Configuration tool for easy customisation of rated voltage, monitoring parameters/tolerances, functionalities and operation.

Flexible remote management

  • Remote management via LAN networks (SNMP).
  • Real-time monitoring (RS485).
  • Configurable dry contacts communication port via local setup connection.
  • USB port & RS232 port for STATYS XS local monitoring.

Download Brochure

Technical Data

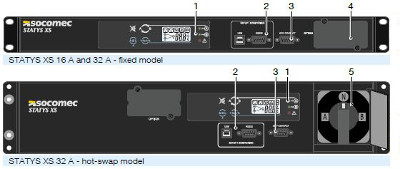

Front View



statys-xs-front-view

1. Control and monitoring panel
2. Setup connetion ports
3. Dry contacts port
4. Slot for RS485 or SNMP board
5. Front-mounted bypass



Connections



Mod_077_a

1. Source input sockets (2x IEC 320-C20)
2. 16 A output socket (IEC 320-C19)
3. 10 A output sockets (2x 4x IEC 320-C13)
4. Source input terminals
5. Output protections
6. 16 A output sockets (2x IEC 320-C19)
7. 10 A output sockets (2x 8x IEC 320-C13)
8. Source output terminals
9. 16 A locking output sockets (2x IEC 320-C19)
10. 10 A locking output sockets (2x 6x IEC 320-C13))



Characteristics

STATYS XS

Model
16 A - fixed model 32 A - fixed model 32 A - hot-swap model

INPUT / OUTPUT

Rated current
16 A (configurable 10 A to 16 A) 32 A (configurable 20 A to 32 A) 32 A (configurable 20 A to 32 A)
Rated voltage 200 / 208 / 220 / 230 / 240 V
Voltage tolerance ± 10% (configurable)
Rated frequency 50/60 Hz
Frequency tolerance ± 10% (configurable)
Transfer time ITIC curve compliant
Admitted overload 125% for 1 minutes, 150% for 30 seconds

CONNECTIONS

Input
2x IEC C20 (16 A) Terminals 1x 6P (10 mm 2) Terminal 1x4P (up to 35 mm2)
Output
1x IEC C19 (16 A), 8x IEC C13 (10 A) 2x IEC C19 (16 A), 16x IEC C13 (10 A) 2x locking IEC C19 (16 A), 12x locking IEC C13 (10 A), terminal 1x 2P (up to 35 mm2)

COMMUNICATION AND USER INTERFACES

Display LCD display
Standard communication features slot for optional communication board, 5 dry contacts (voltage-free, configurable), setup connection port for configuration tool
Communication options SNMP card, RS485 card

ENVIRONMENT

Operating ambient temperature up to +40 °C
Relative humidity 5% to 90% without condensation
Acoustic level at 1 m (ISO 3746) <25 dBA

Mechanical specifications

Dimensions W x D x H
440 (19”) x 285 x 44 mm (1U) 440 (19”) x 360 x 88 mm (2U) 440 (19”) x 420 x 88 mm (2U)
Weight
4kg 6kg 9kg

Standards

Directives 2014/35/UE, 2014/30/UE
Standards IEC60950-1, CEI/EN 62310-2
Environmental WEEE, ROHS
Product declaration CE
