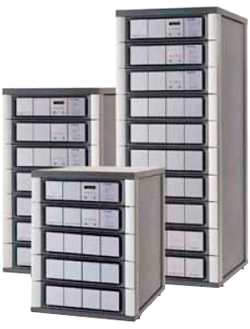

Scalable and flexible modular solution
Single/single phase UPS from 1.5 to 24 kVA
The solution for
- e.business
- Server farms
- Telecommunications
- Medical
- Computer networks
Advantages
A completely modular system
- MODULYS System is the most flexible and modular system in the entire range.
For use under constraints
- Designed for the most demanding IT applications, such as data centres, ISP and ASP and call centres, MODULYS System guarantees unparalleled continuity of service. Offering a large number of available slots, it can be easily upgraded in terms of power and back-up time, and provides the essential redundancy required by these strategic applications.
Full digital control technology
- MODULYS System is controlled by digital circuits. Their use allows for greater precision and ensures that the operating parameters of the whole system are stable over time.
The answer to all your needs
Upgradable over time
- MODULYS adapts easily to changes and to the growth of your system. Power modules of 1.5, 3, 4.5 and 6 kVA, in tower, rack and system versions are easily combined to ensure the ideal configuration.
Total protection
- MODULYS is a modular UPS. The number of Mod-Power and Mod-Battery units can easily be increased to provide redundant operation, from N + 1 to N + X. In this way, total availability of the system is achieved, even if one or more modules are inoperative.
Continuous protection
- MODULYS has “hot swap” power and back-up modules which can be replaced or inserted while the system is in operation. In this way, true continuity of power supplied to the load is achieved, without any interruption of service.
Organisation of your future needs
- MODULYS modular design allows the number of modules to be increased and therefore, the power and back-up time of your UPS to grow. In this way you can easily cope with future situations which you are not able to predict today.
Working space
- MODULYS is the most compact UPS in its category. Whether in stand- alone version or one of the many system configurations, the installation takes up very little of your working area.
“No Single Point of Failure” solutions
- Each power module has its own integrated controller and an automatic bypass. In the system version, this design provides an additional guarantee since the load will be powered even if one of the modules is not working.
- Remote control panel
- Mimic panel
- Mod-Power
- Mod-Battery
- Battery pack
Basic configurations
Expandable from 1.5 kVA to 6 kVA
|
|
|
Expandable from 4,5 kVA to 18 kVA
|
|
|
|
Expandable from 6 kVA to 24 kVA
|
|
|
|
Expandable from 9 kVA to 24 kVA
|
|
|
UPS and internal batteries
|
|
|
Technical Data
| Sn [kVA] |
|
||||
| Pn [kW] |
|
||||
| Input/Output 1/1 |
|
||||
| Input/Output 3/1 |
|
Input
| Rated voltage |
|
||
| Voltage tolerance | ± 20 % (up to -30 % at 70 % nominal load)> | ||
| Rated frequency | 50/60 Hz | ||
| Frequency tolerance | ± 10 Hz | ||
| Power factor | 0.99 |
Output
| Rated voltage | 230 V (1ph + N) |
| Voltage tolerance | ± 3% (can be set 208/220/240 V) |
| Rated frequency | 50/60 Hz |
| Frequency tolerance | ± 2% (± 0.1% autonomous frequency) |
| Overload | 110% for 1 minute, 130% for 10 seconds, 200% for 5 cycles |
| Crest factor | 3:1 |
Bypass
| Rated voltage | voltage selected |
| Voltage tolerance | ± 15% |
| Rated frequency | frequency selected |
| Frequency tolerance | ± 2% |
Efficiency
| Online mode @ 40 % of load | up to 91% |
| Fast EcoMode | 97% |
Environment
| Operating ambient temperature | from 10 °C up to +40 °C (from 15 °C to 25 °C for maximum battery life) |
| Relative humidity | 0% - 90% without condensation |
| Maximum altitude | 1000 m without de-rating (maximum 3000 m) |
Mod-System MODULYS MC - EB
| Mod-MC 4XX - 4 slots W x D x H | 550 x 625 x 760 mm | |||
| Mod-MC 6XX - 6 slots W x D x H | 550 x 625 x 1026 mm | |||
| Mod-MC 9XX - 9 slots W x D x H | 550 x 625 x 1425 mm | |||
| Weight with standard batteries | depending on the configuration | |||
| Degree of protection | IP20 | |||
| Acoustic level at 1 m (ISO 3746) |
|
|||
| Heat dissipation |
|
|||
| Connections | terminals |
Standards
| Safety | IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2 |
| EMC | IEC/EN 62040-2, AS 62040.2 |
| Performance | IEC/EN 62040-3, AS 62040.3 |
| Product declaration | CE, RCM (E2376) |
