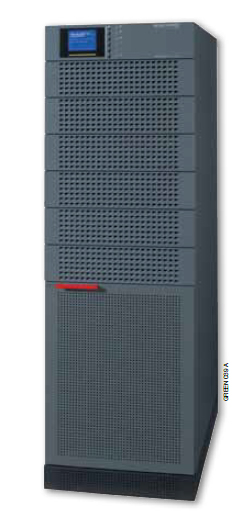

Totally modular for the best modular battery solution. Power scalability up to 360 kVA. Modulys Green power suits perfectly, either with unscheduled site upgrades or upgrading in successive steps, thanks to its modularity.
Features
- Redundant N+1 architecture based on parallel able plug-in power modules providing full power supply to load even if a module fails
- No single point of failure thanks to built-in redundant system design: redundant power supply, charger, etc
- Reduced MTTR: power system remains in online mode and a module can be easily replaced or added in a few minutes without compromising load protection
- Self-configuration ensures agility while changing and maximum availability during maintenance operations (load not transferred to by-pass mode)
- Built-in fan speed control and individual fan efficiency check
- Dual input feed (Mains and Aux Mains) guarantees maximum availability of emergency bypass line
- Modulys Green Power vertical and horizontal modularity easily and quickly supports the wide range of evolving load requirements
- Repeatable and standardized scalable architecture based on real hot pluggable power modules
- Vertical modularity for power scalability up to 120 kVA by simply plugging a power module into the system
- Horizontal modularity for scalability up to 360 kVA by coupling three modular systems
- Power granularity to meet detailed power on demand for incremental steps of 20 kVA
Technical Data
| MODULYS Green Power | ||||||||||||||||||
| Number of modules | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Sn [kVA] - module | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 220 | 240 | 260 | 280 | 300 | 320 | 340 | 360 |
| Pn [kW] - module(3) | 18 | 36 | 54 | 72 | 90 | 108 | 126 | 144 | 162 | 180 | 198 | 216 | 234 | 252 | 270 | 288 | 306 | 324 |
| Input/output | 3/3 | |||||||||||||||||
| Redundant configuration | N+x | |||||||||||||||||
INPUT
| Rated voltage | 400 V | |||||||||||||||||
| Voltage tolerance | -25 % + 20 % (up to -50 % at 70 % Pn) | |||||||||||||||||
| Rated frequency | 50/60 Hz | |||||||||||||||||
| Frequency tolerance | ± 10% | |||||||||||||||||
| Power factor / THDI(1) | 0.99 / < 3% | |||||||||||||||||
OUTPUT
| Rated voltage | 400 V (380/415 configurable) | |||||||||||||||||
| Voltage tolerance | ± 1% | |||||||||||||||||
| Rated frequency | 50/60 Hz (selectable) | |||||||||||||||||
| Frequency tolerance | ± 0.05% (on mains power failure) | |||||||||||||||||
| Voltage distortion | < 1 % | |||||||||||||||||
| Overload(2) | 125% for 10 minutes, 150% for 1 minute | |||||||||||||||||
| Crest factor | 3:1 | |||||||||||||||||
BYPASS
| Rated voltage | 400 V (380/415 configurable) | |||||||||||||||||
| Voltage tolerance | ± 15% (configurable from 8% to 15%) | |||||||||||||||||
| Rated frequency | 50/60 Hz (selectable) | |||||||||||||||||
| Frequency tolerance | ± 1 Hz (configurable from 0,5 to 5 Hz) | |||||||||||||||||
MODULE
| Battery charging current | 1.2 - 5 A | |||||||||||||||||
| Efficiency - On-line | up to 96 % | |||||||||||||||||
| Efficiency - Eco Mode | up to 98 % | |||||||||||||||||
| Weight | 30 kg | |||||||||||||||||
ENVIRONMENT
| Operating ambient temperature | from 0 °C up to +40 °C (from 15 °C to 25 °C for maximum battery life) | |||||||||||||||||
| Relative humidity | 0 % - 95 % without condensation | |||||||||||||||||
| Maximum altitude | 1000 m without derating (max. 3000 m) | |||||||||||||||||
| Acoustic level at 1 m (ISO 3746) | 60-66 dBA | |||||||||||||||||
| Required cooling capacity | 440 ÷ 8960 m3/h | |||||||||||||||||
| Dissipated power | 1000 ÷ 18140 W | |||||||||||||||||
| Dissipated power | 3400 ÷ 61900 BTU/h | |||||||||||||||||
UPS CABINET
| Dimensions W x D x H | 520 x 975 x 1695 mm | 520 x 975 x 1695 mm | 520 x 975 x 1695 mm | |||||||||||||||
| Weight (empty cabinet) | 200 kg | 200 kg | 200 kg | |||||||||||||||
| Degree of protection | IP20 | |||||||||||||||||
| Colours | cabinet: RAL 7012, front bottom base: RAL 7016 | |||||||||||||||||
STANDARDS
| Safety | EN 62040-1 (NEMKO certified), EN 60950-1 | |||||||||||||||||
| EMC | EN 62040-2 | |||||||||||||||||
| Performance | EN 62040-3 [VFI-SS-111] | |||||||||||||||||
| Product declaration | CE | |||||||||||||||||
(1) For source THDV < 2 % and nominal load. - (2) From inverter. - (3) @ 25 °C.
