Solution for seismic environments
Three/three phase UPS from 160 to 500 kVA/KW
The solution for
- Data centres
- Telecommunications
- Service sector
- IT Networks/ Infrastructures
- Industrial infrastructures
Solution for seismic environments.
The test

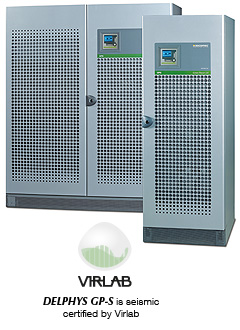

- DELPHYS GP-S units have been tested by VIRLAB S.A. (accredited by ENAC Spanish National Accreditation entity, ENAC certificate number 54/LE131) in compliance with the standard test procedure for the seismic qualification of electrical cabinets required by the "Uniform Building Code UBC-1997".
- The seismic tests have been performed according to UBC-1997 covering zone 2A, 3 and 4. As required by the norms, the UPS have been submitted 5 times at 50% of full level in zone 2A and at full level in Zones 2A, 3 and 4.
The result
- The DELPHYS GP-S units have successfully passed seismic tests performed at levels covering Zones 2A, 3 and 4 and experienced no malfunction either during or after the test.
Technical Data
| Sn [kVA] |
| |||
| Pn [kW] |
| |||
| Input/Output | 3/3 | |||
| Parallel configuration | up to 4 MW |
Input
| Rated voltage | 400V 3ph |
| Voltage tolerance | 240V to 480V(1) |
| Rated frequency | 50/60 Hz |
| Frequency tolerance | ± 10 Hz |
| Power factor/THDI | > 0.99 / < 2.5%(2) |
Output
| Rated voltage | 3ph + N 400V |
| Voltage tolerance static load | ±1% dynamic load in accordance with VFI-SS-111 |
| Rated frequency | 50/60 Hz |
| Frequency tolerance | ± 2% (configurable for GenSet compatibility) |
| Total output voltage distortion - linear load | ThdU <1.5% |
| Total output voltage distortion - non-linear load (lEC 62043-3) | ThdU <3% |
| Short circuit current(1) | up to 3.4 x In |
Bypass
| Rated voltage | rated output voltage |
| Voltage tolerance | ± 15% (configurable with from 10% to 20%) |
| Rated frequency | 50/60 Hz |
| Frequency tolerance | ± 2% (configurable for GenSet compatibility) |
Efficiency
| Online mode @ 40 % of load | up to 96% |
| Online mode @ 75 % of load | up to 96% |
| Online mode @ 100 % of load | up to 96% |
| Fast EcoMode | up to 99% |
Environment
| Operating ambient temperature | from 10 °C up to +40 °C(1) (from 15 °C to 25 °C for maximum battery life) | |||
| Relative humidity | 0% - 95% without condensation | |||
| Maximum altitude | 1000 m without derating (max. 3000 m) | |||
| Acoustic level at 1 m (ISO 3746) |
|
UPS Cabinet
| Dimension W x D x H |
| |||
| Weight |
| |||
| Degree of protection | IP 20 (other IP as option) | |||
| Colours | cabinet: RAL 7012, door: silver grey |
Standards
| Safety | IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2 |
| EMC | IEC/EN 62040-2, AS 62040.2 |
| Performance | IEC/EN 62040-3, AS 62040.3 |
| Seismic compliance | Uniform Building Code UBC-1997, EN 60068-3-3/1993 (seismic),EN 60068-2-6/2008 (sinusoidal), EN 60068-2-47/2005 (mounting). |
| Product declaration | CE, RCM (E2376) |
(1) Worst condition (Auxiliary Mains not available)
(2) With input THDV < 1%
