Reliable cost-effective power protection
Three/single and three/three phase from 10 kVA to 20kVA
The solution for
- Server rooms
- Service sector
- Infrastructure
- Healthcare sector
- Light industrial applications
Advantages
Innovative design
- Easy to order, install and operate.
- Very compact footprint.
- Robust and reliable connectivity.
- Clear multilanguage LCD interface.
Total adaptability
- 2 UPS configurations: with or without batteries.
- Integrated maintenance bypass.
- Integrated LAN network monitoring.
- Communication ports for building management system (BMS).
Optimum availability
- Designed to operate in challenging electrical environments.
- Redundant bypass protection.
- Low EMI emissions compliant for commercial installations.
- Internal isolation transformer available on request.
- Innovative battery management extending battery life.
- Remote monitoring service.
Technical Data
| Sn [kVA] |
| |||
| Pn [kW] |
| |||
| Input/Output |
|
Input
| Rated voltage | 3P+N 400 V |
| Voltage tolerance | ± 20 % (-40 % @ 70 % of nominal load) |
| Rated frequency | 50/60 Hz ±10 % |
| Power factor / THDI | 0.99 / < 2.5% |
Output
| Rated voltage | 1P+N: 230 V (configurable: 208(1)/220/230/240) 3P+N: 400 V (configurable: 360(1)/380/400/415) |
| Voltage tolerance | ± 1% |
| Rated frequency | 50/60 Hz ±2 (up to ±5 with generator - selectable) |
| Overload | up to 150 % for 30 seconds |
| Crest factor | 3:1 (complying with IEC 62040-3) |
| Connections | terminals |
Bypass
| Rated voltage | rated output voltage |
| Voltage tolerance | ±15 % (± 20 % with generator - selectable) |
| Ratede frequency / tolerance | 50/60 Hz ±2 (up to ±5 with generator - selectable) |
Communication
| Interfaces | RS232 - Ethernet |
| Optional cards | SNMP card - ADC/RS485 card - MODBUS card |
| Communication software | LOCAL VIEW - NET VISION - WEB BROWSER |
Efficiency
| Online mode | up to 95% |
| ECO mode | up to 98% |
Environment
| Ambient temperature | 0 to 40 °C (15 to 25 °C for maximum battery life) | ||
| Relative humidity | 0-95 % non-condensing | ||
| Maximum altitude | 1000 m without derating | ||
| Noise level at 1 m |
|

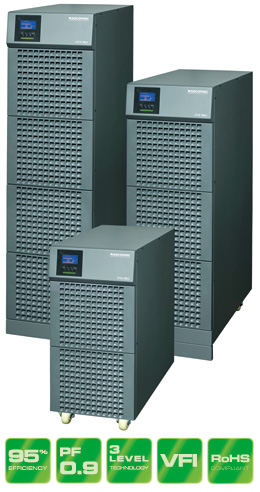

UPS cabinet
| Type S - Dimensions W x D x H | 370 x 780 x 810 mm |
| Type S - Weight (without batteries) | 58 kg |
| Type M - Dimensions W x D x H | 370 x 780 x 1170 mm |
| Type M - Weight (without batteries) | 75 kg |
| Type T - Dimensions W x D x H | 370 x 780 x 1385 mm |
| Type T - Weight (without batteries) | 82 kg |
| Degree of protection | IP20 |
Standards
| Safety | IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2 |
| EMC | IEC/EN 62040-2 class C2, AS 62040.2 |
| Performance | IEC/EN 62040-3 - AS 62040.3 |
| Product certification | CE, RCM (E2376) |
(1) Pout = 90 % Pnom
