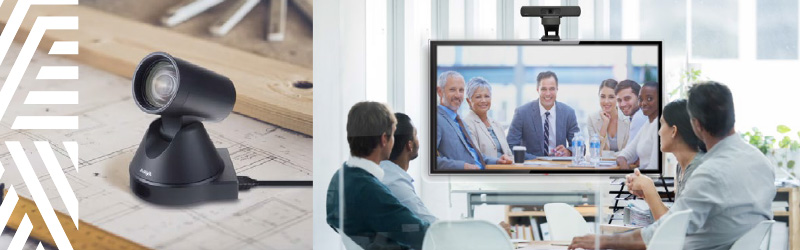

Avaya IX™ Huddle Camera HC050

Avaya IX™ Huddle Camera HC050

Avaya provides High Definition (HD) video conferencing room systems that incorporate the latest state-of-the-art video technology with capabilities mandatory for today’s room system deployments.

Avaya IX™ Huddle Cameras HC050 is the latest additions of cameras for Huddle Rooms that can be used on XT as first or additional cameras. Users can enjoy full control directly from XT Room System through Remote Control, Scopia Control, Web Interface, APIs and so on.

The huddle cameras are great for enabling all of your small to medium meeting rooms and spaces, delivering utility, security, and an exceptional experience for training, brainstorming, team and customer meetings with a personal connection. The ease of installation and use make them ideal for individual workgroups, small to mid-size businesses, or omplementing an enterprise collaboration deployment

Suitable as first or second camera of all the products of XT Series, or as laptop camera for the Avaya Equinox® Client. It is a full HD Pan Tilt Zoom USB camera, with 1080p30 video signal and optical zoom 12x. A perfect solution for small and medium rooms. There is an option to include 1-way POD microphone for small rooms and 3-way POD microphone for medium rooms.

Camera ModelHC050
12x 1080p30
Image deviceCMOS 1/2.7’’
Video Formats with laptop1080p30/25
720p30/25
Video Formats with XT1080p30 / 720p30
Video signalCompressed (H.264) on USB
Focal Lengthf3.5mm ~ 42.3mm,
F1.8 ~ F2.8
Min object distance (wide)100mm
Min illumination0.5 Lux @ (F1.8, AGC ON)
HFoV72°
VFoV43°
Optical Zoom (*)12x
Digital Zoom (*)16x
Pan Range+/-170°
Tilt Range+/- 30°
Serial ControlSerial In – Out - USB
Ceiling MountSupported
Camera MountTripod screw hole (1/4-20 UNC)
Weight0.91Kg
Dimensions
w/h/d
128.5mm x 118mm x 156.2mm
Current consumption
(max)
1A
Use with Equinox ClientYes
Voltage RangeDC 12V
IR repeater as TTL signalNot available
Camera OutputUSB
MicrophoneIncluded, frequency response 50Hz - 8KHz, 3m radius omni (6m diameter), coverage 360°
