MODULYS RM GREEN POWER 2: 4 x 25KW

Socomac ITYS-E ONLINE UPS 1-2-3-6-10KVA

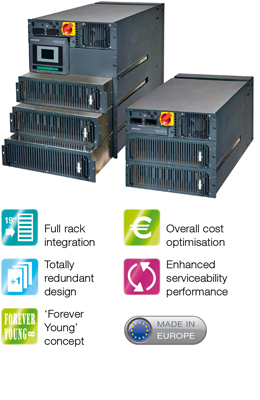

MODULYS RM GP is a 3-phase modular UPS system designed for 19” rack integration.

Easy to integrate and install whilst simple to manage and maintain, it provides maximum availability and power protection in a compact design leaving free space for other rack-mounted devices.

Designed for 19” rack integration

Easy to integrate

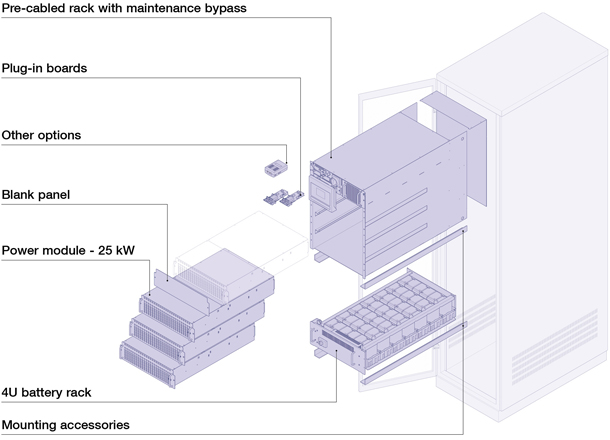

  • Specifically designed for integration in 19” standard rack cabinets
  • Adjustable rails and mounting accessories
  • Pre-cabled system for simplified connections

No-risk integration

  • Assured compatibility with any 19” standard rack cabinet
  • Pre-engineered and lab-tested parts assuring total system reliability
  • Automatic self-configuration power modules

Easy to customise

  • Complete set of pre-engineered and pretested parts to meet any customer need

Easy to manage

  • Full documentation package including schematics, integration instructions, technical sheets, etc
  • Factory-set configurations for easy model selection
  • Full set of pre-engineered options for easy product customisation

Overall cost optimisation

  • Compact sub-rack enclosure saving valuable cabinet rack space
  • 2 sub-rack enclosure models for optimum sizing
  • Best-in-class €/ kW ratio thanks to high power density and PF=1
  • Plug & Play and self-configuration power modules for easy and time saving system set up
  • Pre-engineered and lab-tested parts for easy and time saving customisation

Simplified logistics

  • Fewer standardised parts for easy ordering
  • Parts always in stock for fast procurement
  • Fewer parts covering a wide range of configurations, power, back-up time and options

Designed to assure absolute business continuity

Total resilience

  • Electronics-free (failure-free) sub-rack enclosure
  • Totally independent and self-sufficient modules
  • No centralised control for parallel and load sharing management
  • Totally segregated, fully sized and centralised auxiliary mains bypass and distributed inverter bypass
  • Configurable N+1 redundancy (power & battery)
  • No single point of failure
  • Redundant parallel bus connection (ring configuration)

Optimum reliability

  • Power module designed for superior robustness verified by an independent body (MTBF > 1,000,000 hr)
  • Highly robust bypass (MTBF > 10,000,000 hr)
  • Acid leak-proof modular battery box

Maximum availability

  • Fast recovery of lost redundancy thanks to minimum MTTR (Mean Time To Repair)
  • No risk of downtime during power upgrading and maintenance
  • No risk of failure propagation

Pay as you need

  • Totally modular rack-mounting system for power scaling or for quickly adapting to business changes
  • No prior expenditure for unpredictable future extensions in power and back up time
  • No need to duplicate the system hardware to get redundancy

Enhanced serviceability performance

  • Fast and safe maintenance based on hot-swap parts (power modules, bypass, electronic boards, batteries)
  • Safe and risk-free maintenance: only sealed box is replaced, no exposed live parts
  • Concurrent maintenance: no need to switch on static bypass or maintenance bypass
  • Battery can be hot-swapped without shutting down the connected equipment

Designed to assure absolute business continuity

Certifications and attestations

Socomac ITYS-E ONLINE UPS 1-2-3-6-10KVA

Technical data

 MODULYS RM GP
Model 9U 15U
Number of power modules 1 to 2 x 25 kW 1 to 4 x 25 kW
Configuration N, N+1 redundant
Power (Sn) 25 to 50 kVA 25 to 75 kVA
Power (Pn) 25 to 50 kW 25 to 75 kW
Input / output 3 / 3
INPUT
Voltage 400 V 3ph (340 V to 480 V)
Frequency 50 / 60 Hz ±10 %
Power factor / THDI > 0.99 / < 3 %
OUTPUT
Voltage 380 / 400 / 415 V ±1 % 3ph+N
Frequency 50 / 60 Hz ±0.1 %
Voltage distortion < 1 % (linear load), < 4 % (non-linear load according to lEC 62040-3)
Short-circuit current up to 3 x In
Overload 125 % for 10 minutes, 150 % for 1 minute
Crest factor 3:1
HOT-SWAP BYPASS
VoltageRated output voltage ±15 % (configurable from 10 % to 20 %)
Frequency 50 / 60 Hz ±2 % (configurable for GenSet compatibility)
Weight 7 kg 7.5 kg
EFFICIENCY (TÜV SÜD VERIFIED)
Online double conversion mode up to 96.5 %
ENVIRONMENT
Ambient temperature0 °C to 40 °C (15 to 25 °C for maximum battery life)
Relative humidity 0 to 95 % without condensation
Maximum altitude 1000 m without derating (3000 m max)
Acoustic level at 1 m < 53 dBA
UPS RACK
Dimensions W x D x H 442 mm x 920 mm x 9 U 442 mm x 920 mm x 15 U
Weight (empty cabinet) 36 kg 42 kg
Degree of protectionIP20
HOT-SWAP POWER MODULE
Height 3U
Weight 34 kg
Type Hot plug-in / Hot-swappable
MTBF > 1000000 hours (calculated and verified)
HOT-SWAP BATTERY RACK
Type Acid leak-proof - Long Life batteries
Protection Independent protection for each battery string
Dimensions W x D x H 442 mm x 890 mm x 4 U
Weight (empty rack) 15 kg
STANDARDS
Safety EN 62040-1, EN 60950-1
EMC EN 62040-2 Class C2
Performance EN 62040-3 (VFI-SS-111)
Product certification CE
