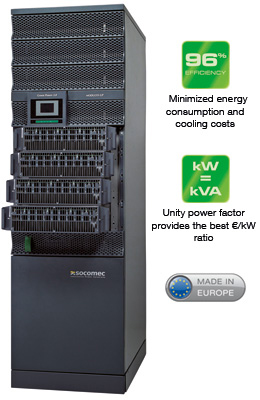

| UPS SYSTEM | Power (Sn) | 25 to 200 kVA | Power (Pn) | 25 to 200 kW | Number of power modules | 1 to 8 | Input / output | 3/3 | Redundant configuration | N+x | Parallel configuration | up to 600 kW (up to 3 systems) |
INPUT |
---|
Voltage | 400 V 3ph (340 V to 480 V) | Frequency | 50/60 Hz ±10% | Power factor / THDI | > 0.99 / < 3% |
OUTPUT |
---|
Voltage | 380/400/415 V ±1% 3ph+N | Frequency | 50/60 Hz ±0.1% | Voltage distortion | < 1% (linear load), < 4% (non-linear load according lEC 62040-3) | Short-circuit current | up to 3 x In | Overload | 125% for 10 minutes, 150% for 1 minute | Crest factor | 3:1 |
BYPASS |
---|
Voltage | rated output voltage ±15% (configurable with from 10% to 20%) | Frequency | 50/60 Hz ±2% (configurable for GenSet compatibility) |
EFFICIENCY (TÜV SÜD VERIFIED) |
---|
Online double conversion mode | up to 96.5% |
ENVIRONMENT |
---|
Ambient temperature | 0 °C to 40 °C (15 to 25 °C for maximum battery life) | Relative humidity | 0 to 95% without condensation | Maximum altitude | 1000 m without derating (3000 m max) | Acoustic level at 1 m | < 55 dBA |
SYSTEM CABINET |
---|
Dimensions (W x D x H) | 600 x 890 x 1975 mm | Weight (empty cabinet) | 210 kg | Degree of protection | IP20 |
STANDARDS |
---|
Safety | IEC/EN 62040-1, EN 60950-1, AS 62040.1.1, AS 62040.1.2 | EMC | IEC/EN 62040-2 Class C2, AS 62040.2 | Performance | VFI-SS-111 - IEC/EN 62040-3, AS 62040.3 | Product certification | CE, RCM (E2376) |
POWER MODULE |
---|
Height | 3U | Weight | 34 kg | Type | Hot plug-in / Hot-swappable | MTBF | > 600 000 hours (calculated and verified) |
BATTERY MODULE |
---|
Type | Acid leak-proof - Long Life batteries | Protection | Single fuse for each battery box |
| BATTERY CABINETS | | S modular battery cabinet | M modular battery cabinet | High capacity battery cabinet | Dimensions W x D x H | 600 x 890 x 1975 mm | 810 x 910 x 1975 mm | 810 x 910 x 1975 mm | Number of battery bays | 12 | 12 | Blocks |
|
