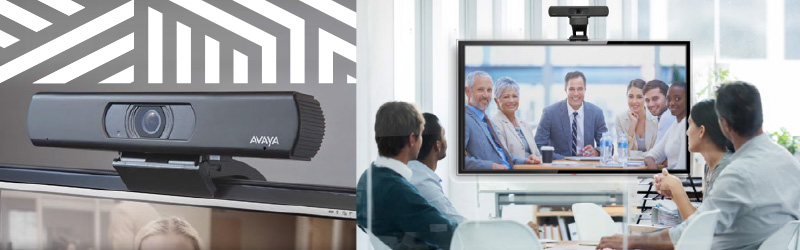

Avaya IX™ Huddle Camera HC020

Avaya IX™ Huddle Camera HC020

Avaya provides High Definition (HD) video conferencing room systems that incorporate the latest state-of-the-art video technology with capabilities mandatory for today’s room system deployments.

Avaya IX™ Huddle Cameras HC020 is the latest additions of cameras for Huddle Rooms that can be used on XT as first or additional cameras. Users can enjoy full control directly from XT Room System through Remote Control, Scopia Control, Web Interface, APIs and so on.

The huddle cameras are great for enabling all of your small to medium meeting rooms and spaces, delivering utility, security, and an exceptional experience for training, brainstorming, team and customer meetings with a personal connection. The ease of installation and use make them ideal for individual workgroups, small to mid-size businesses, or omplementing an enterprise collaboration deployment

Suitable as first or second camera of all the products of XT Series, or as laptop camera for the Avaya Equinox® Client. It is a full HD USB fixed camera, leveraging the quality of a UltraHD 4K sensor to provide a high quality 1080p30 video signal, with digital Pan Tilt Zoom (1080p resolution up to 2x zoom, 720p @3x zoom), and the option to send uncompressed signal on HDMI. There is an option to include 1-way POD icrophone for small rooms.

Camera ModelHC020
1080p@30
Image device4K@30/25 CMOS 1/2.7’’
Video Formats with laptop4K@30/25
1080p60/50/30/25
Video Formats with XT1080p30 / 720p30
Video signalCompressed (H.264) on USB or uncompressed on HDMI
Focal Lengthf=2.8mm
Min object distance (wide)500mm
Min illumination0.05 Lux @ (F1.8, AGC ON)
HFoV104°
VFoV68°
Optical Zoom (*)NA
Digital Zoom (*)8x
Pan RangeePTZ (**)
Tilt RangeePTZ (**)
Serial ControlVia USB
Serial ControlVia USB
Ceiling MountSupported
Camera MountTripod screw hole (1/4-20 UNC)
Weight0.35Kg
Dimensions
w/h/d
194mm x 34mm x 42mm
(without bracket)
Current consumption
(max)
1A
Use with Equinox ClientYes
Voltage Range5V(USB)
IR repeater as TTL signalNot available
Camera OutputUSB-HDMI
MicrophoneIncluded, frequency response 50Hz - 8KHz, 3m radius omni (6m diameter), coverage 360°
